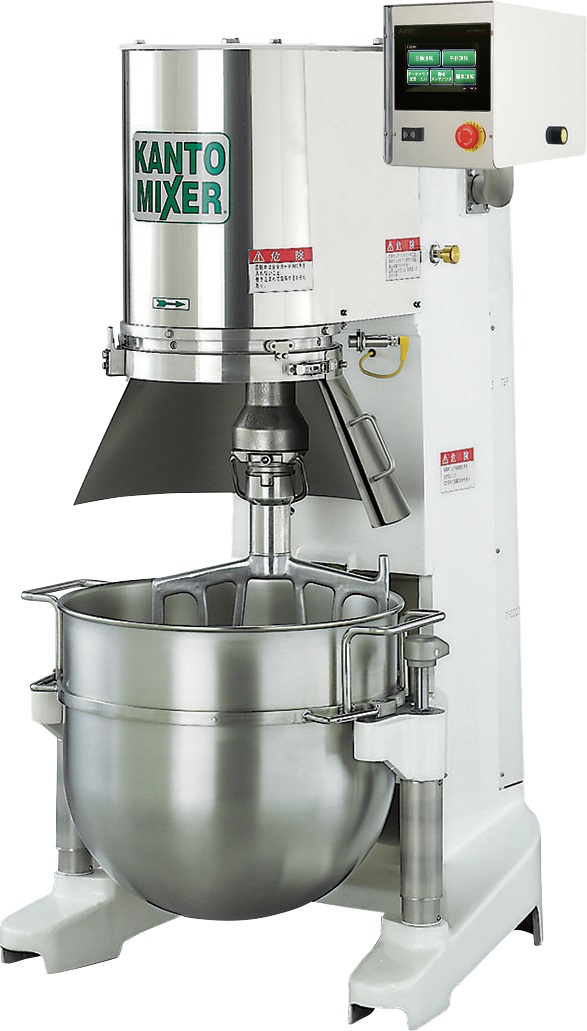

Mixers

HPi-50-60-90
50L・60L・90L types（Manual bowl lifting / Timer equipped)

• Smooth and low noise running is available by inverter control.
• Various mixings are available by changing attachments.
• Full covered safety guard prevents foreign matter from entering products during mixing.
• A touch screen type panel allows excellent operational performance.

Technical Features:

HPi120 -200
120L・200L types（Manual bowl lifting / Timer equipped)

• Replacement machines for SS-251/501
• Everything in the product zone and parts of the bowl holders are stainless steel and the main body of the mixer has a stainless steel finish.
• The touch screen type panel allows better operational performance than SS-251/501.
• Smooth and low noise running is available by inverter control.
• Various mixings are available by changing attachments.
• Full covered safety guard prevents foreign matter from entering products during mixing.

1. Bowl Specifications

• Material: Stainless Steel
• Models & Capacities:
  • HPi-20M: 20L (Ø 317mm × H 305mm)
  • HPi-30M / HPi-30L / HPi-30AS: 30L (Ø 360mm × H 365mm)
  • HPi-50 / HPi-50AS: 50L (Ø 410mm × H 410mm)
  • HPi-60 / HPi-60L / HPi-60AS: 60L (Ø 460mm × H 430mm)
  • HPi-90 / HPi-90L / HPi-90AS: 90L (Ø 538mm × H 480mm)
  • HPi-120 / HPi-120L: 120L (Ø 570mm × H 540mm)
  • HPi-200 / HPi-200L: 205L (Ø 750mm × H 593mm)

2. Rotation Speeds

• Multiple speed options (rpm) per model; up to 7 preset speeds.
• Example (HPi-50):
  • Speed 1: 108 rpm
  • Speed 2: 205 rpm
  • Speed 3: 283 rpm
  • Speed 4: 365 rpm
  • Speed 5: 450 rpm

3. Optimal Rotation Speed Range

• HPi-20M: 136–600 rpm
• HPi-30M/L/AS: 100–445 rpm
• HPi-50 / 50AS: 100–400 rpm
• HPi-60 / 60L / 60AS: 85–335 rpm
• HPi-90 / 90L / 90AS: 85–335 rpm
• HPi-120 / 120L: 70–335 rpm
• HPi-200 / 200L: 58–284 rpm

4. Dimensions (Width × Depth × Height in mm)

• HPi-20M: 621 × 692 × 1,173
• HPi-30M: 681 × 765 × 1,236
• HPi-30L: 699 × 781 × 1,534
• HPi-50: 804 × 951 × 1,358
• HPi-60: 706 × 861 × 1,358
• HPi-60L: 775 × 950 × 1,675
• HPi-90: 770 × 990 × 1,533
• HPi-90L: 792 × 991 × 1,800
• HPi-120: 848 × 1,153 × 1,508
• HPi-120L: 848 × 1,153 × 1,833
• HPi-200: 1,040 × 1,220 × 1,680
• HPi-200L: 1,040 × 1,220 × 2,055

5. Motor Output

• Mixing Motor (3-Phase, 200V):
  • HPi-20M: 0.75kW
  • HPi-30 Series: 1.5kW
  • HPi-50 Series: 2.2kW
  • HPi-60 Series: 2.2kW
  • HPi-90 Series: 3.7kW
  • HPi-120 Series: 5.5kW
  • HPi-200 Series: 7.5kW
• Elevation Motor:
  • Manual: HPi-20M, HPi-30M
  • 0.1kW: Most models
  • 0.06kW: HPi-30AS
  • 0.2kW: HPi-90L
  • 0.4kW: HPi-120
  • 0.75kW: HPi-200

6. Net Weight

• HPi-20M: 210 kg
• HPi-30M / 30L / 30AS: 285–370 kg
• HPi-50 / 50AS: 355–520 kg
• HPi-60 / 60L / 60AS: 365–600 kg
• HPi-90 / 90L / 90AS: 530–670 kg
• HPi-120 / 120L: 790–820 kg
• HPi-200 / 200L: 1,230–1,330 kg

Additional Notes:

• All specifications are subject to change without prior notice.
• Voltage options can be customized upon request.
