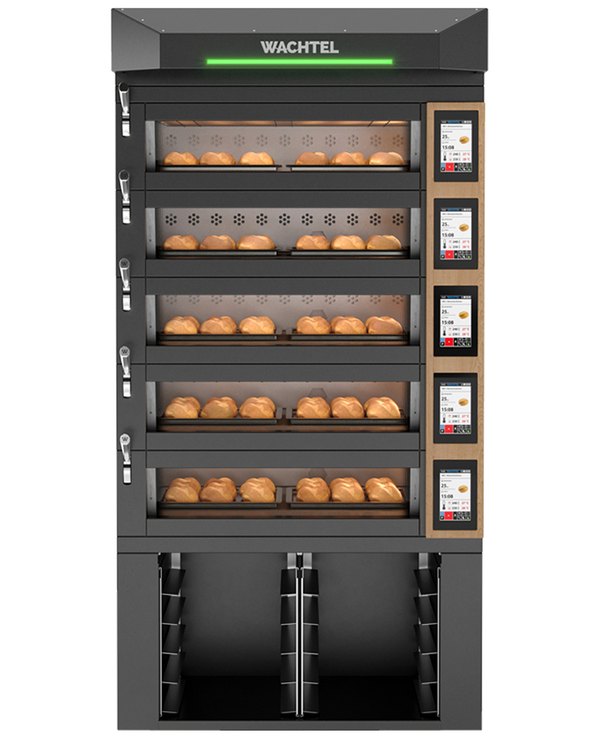

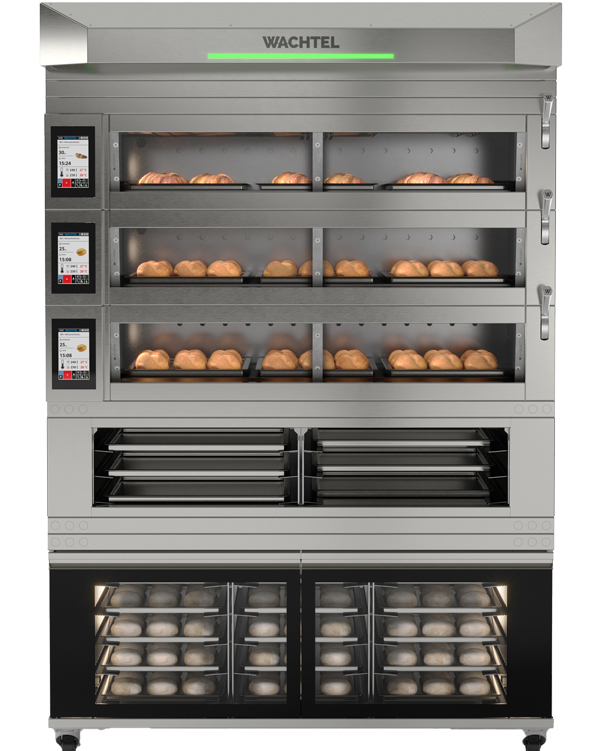

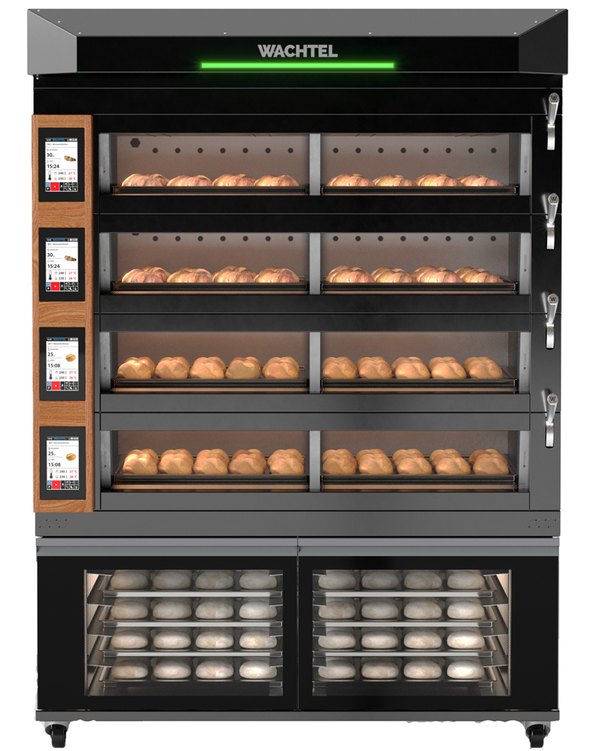

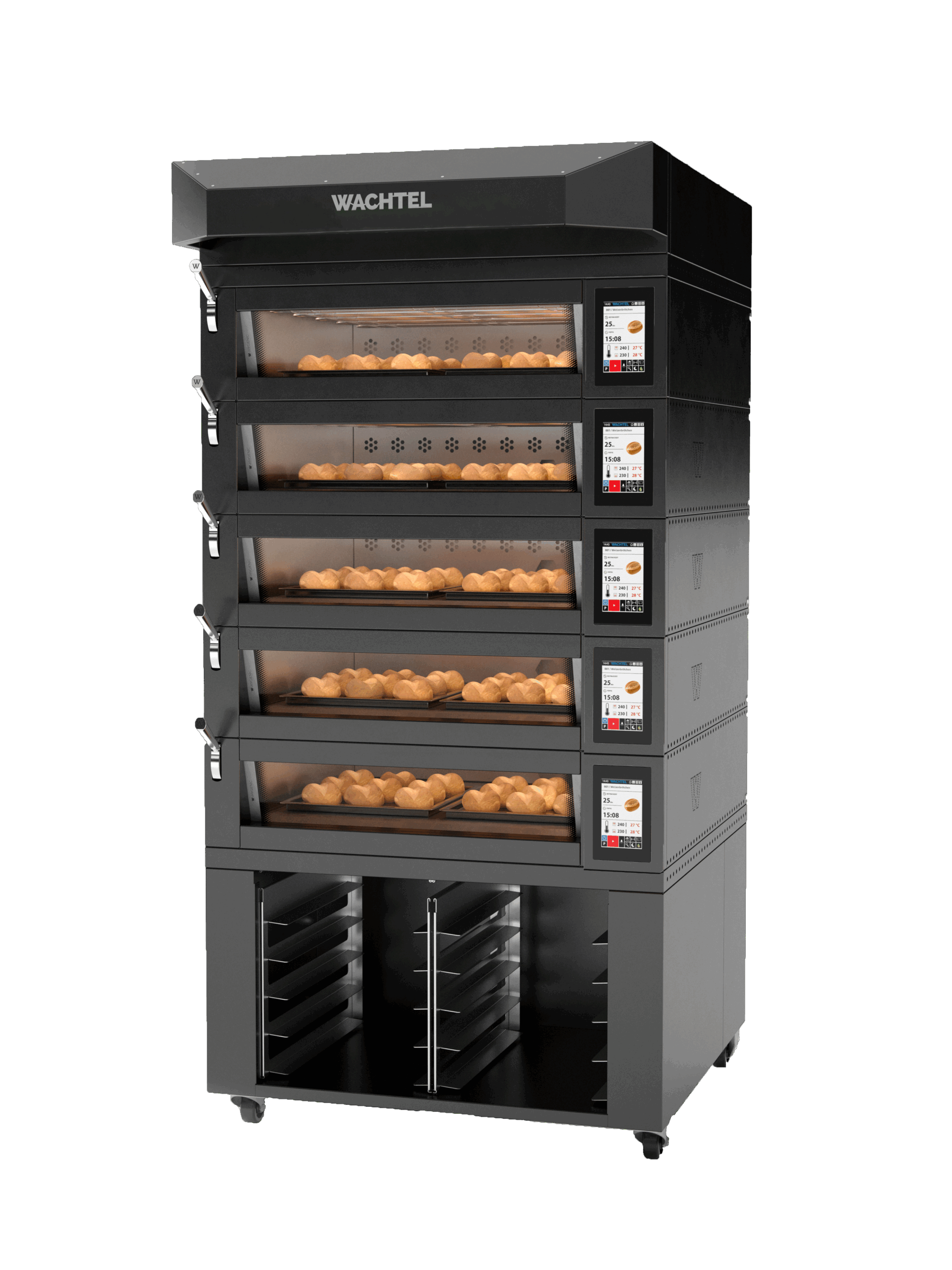

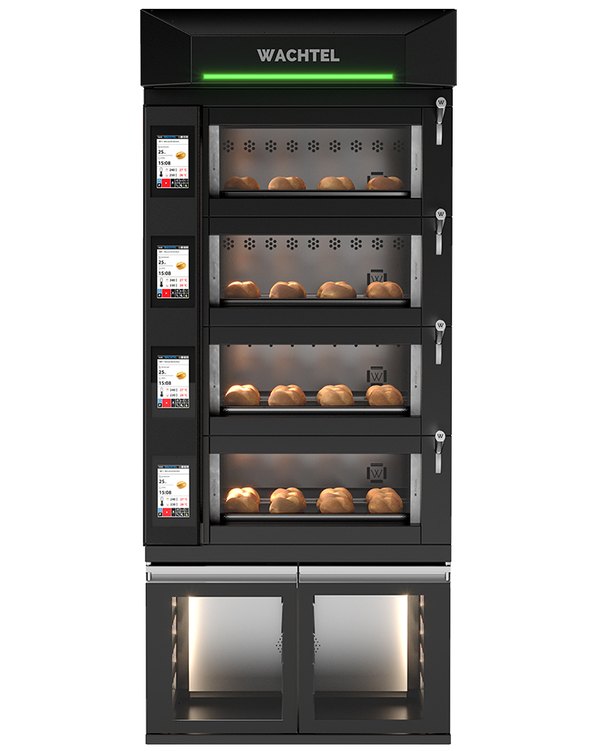

Wachtel PICCOLO PRO Plus
The PICCOLO PRO® Plus is a next-generation electric deck oven designed for consistent, artisan-quality baking. Built on the legacy of the original PICCOLO, it features two advanced technologies:
-
MULTI ZONE BAKING: Four independently controlled temperature zones ensure even heat distribution, delivering uniform results across every tray.
-
POWER STEAM: A high-performance circular steam generator with a cast iron core provides dense, consistent vapor for perfect crust development.
With upgraded energy management, the oven reduces power usage by up to 33%. It also includes a robust stainless steel proofer, advanced PID temperature control, soft-close doors, and integrated LED lighting for efficiency and ease of use.
Ideal for bakeries and retail environments, the PICCOLO PRO® Plus sets a new standard in performance, control, and energy efficiency.
Technical Features:
1. Models Available
-
MINI
-
I
-
IQ
-
II-S
-
II
All models support 2 to 6 decks.
2. Baking Tray Capacity (per Deck)
-
400 × 600 mm trays:
-
MINI: 1
-
I: 2
-
IQ: 2
-
II-S: 3
-
II: 4
-
-
580 × 780 mm trays:
-
I: 1
-
IQ: 1
-
II: 2
-
-
600 × 800 mm trays:
-
I: 1
-
IQ: 1
-
II: 2
-
MINI and II-S: Not applicable
-
3. Internal Oven Dimensions (per Deck)
-
MINI, I: 600 mm width
-
IQ: 800 mm width
-
II-S, II: 1200 mm width
-
Depth (T):
-
MINI: 400 mm
-
I: 800 mm
-
IQ, II-S: 600 mm
-
II: 800 mm
-
-
Available Heights: 140 mm, 165 mm, 200 mm
4. Outer Oven Dimensions
-
Width (B):
-
MINI, I: 900 mm
-
IQ: 1100 mm
-
II-S, II: 1520 mm
-
-
Depth (T):
-
MINI: 930 mm
-
I: 1330 mm
-
IQ, II-S: 1185 mm
-
II: 1336 mm
-
-
Height (H): 300 mm, 185 mm, 220 mm (varies by configuration)
5. Total Oven Depth (with Connections & Hood)
-
MINI: 930 mm
-
I: 1330 mm
-
IQ: 1185 mm
-
II-S: To be determined
-
II: 1336 mm
6. Steam Extractor Hood Dimensions
-
Stem Height (T): 300 mm
-
Stem Height (H): 185 mm
-
Hood Wreath Height: 220 mm
(Applies to all models)
7. Steam Performance
-
All models: 600 ml steam output per deck
8. Connected Load [kW]
-
Deck Height 140 mm / 165 mm / 200 mm:
-
MINI: 2.1 kW
-
I: 3.1 kW
-
IQ: 3.3 kW
-
II-S: 5.4 kW
-
II: 6.5 kW
-
-
Steam Generator:
-
MINI, I, IQ: 1.2 kW
-
II-S: To be determined
-
II: 2.1 kW
-
-
Proofer (All Models): 2.8 kW
